Super-resolution at all scales with active thermal detection
Name관리자| Date2020-03-26 11:49| Hit113
Attachments Super-resolution at all scales with active thermal detection main pic.jpg (21.0K, 35회)

Thermal radiation and its intrinsic super-linearity as a universal detection method applicable to microscopy, RADAR,LIDAR, and more

When you search your lost keys with a flash lamp, when bats detect obstacles during their night flight, or when car radars locate other cars on the road, the very same physical principle works. Be it light, sound, or an electromagnetic wave in general, a probe beam is sent ahead, and a reflected wave of the same kind carries the relevant information back to the detector. That also explains why stealth aircrafts can escape radars: by absorbing radar energy, no signal is reflected back, and they become invisible. The absorbed energy is then converted to heat that was believed to be “useless” until now, only to increase the target temperature.

Researchers at the Center for Soft and Living Matter, within the Institute for Basic Science (IBS, South Korea) found that the temperature increase caused by the probe beam could be utilized to generate a signal per se for detecting objects. Notably, this so-called “active thermal detection” enables super-resolution imaging at all scales, compared to conventional techniques whose application are confined to microcopy only. Super-resolution unveils the small details of an image, making it possible to resolve previously hidden figures. Francois Amblard, the second author of the study says, “Nobody tried to use thermal radiation for super-resolution, even though this signal is so noticeable that it cannot be missed. Our first and deceptively simple idea is to detect objects with their obvious signal, the thermal radiation.”

When an object is illuminated by a probe beam with enough energy to cause its temperature to jump, its thermal radiation soars. In fact, we can find the application of such temperature increase in our everyday life, e.g. for screening feverish passengers at airport controls. When an object undergoes a temperature increase, it emits an intense thermal radiation. The researchers theoretically verified the super-linearity of thermal radiation. They gave an exact quantification of the number of photons emitted by a heated object and showed that even a small temperature increase resulted in a huge change in the emission of light. This process, together with active heating and a detection scheme, could help detecting objects at a very high resolution.

Moreover, the super-resolution factor can be arbitrarily cranked up if a sufficiently high temperature is reached. “Our theory predicts that the emission spatial profile can be made arbitrarily narrow, leading to an improved localization of objects, and even in principle to an arbitrarily large super-resolution. One expects then to be able to better resolve two nearby targets, or to better detect the shape of a target,” explains, Guillaume Graciani, the first author of the study.

Super resolution techniques allowed us to see what was previously unseen, but its magic has been working only in microscopy so far. Notably, this study presents the thermal radiation and its intrinsic super-linearity as a universal way to super resolve objects at all scales from microscopic imaging to flying objects such as planes. The active thermal detection also finds applications in thermal imaging for non-destructive testing, Lidar and Radar technologies for self-driving cars, mid- or long-range detection of stealth objects. It also opens a new field of applications for the most recent thermal photodetectors, such as superconducting nanowire single-photon detectors or HgCdTe avalanche photodiodes. Finally, new kind of thermal probes could be designed for super-resolved thermal detection or imaging at microscopic scales.

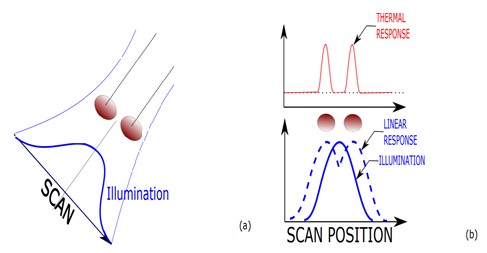

Scanning illumination, thermal response and super-resolution factor - (a) Two objects are illuminated by a scanning focused energy source with a size larger than the objects or the distance between them. (b) The thermal light emission produced by the scanning illumination and the heating of the objects is spatially compressed compared to a linear response to the illumination
▲ Scanning illumination, thermal response and super-resolution factor - (a) Two objects are illuminated by a scanning focused energy source with a size larger than the objects or the distance between them. (b) The thermal light emission produced by the scanning illumination and the heating of the objects is spatially compressed compared to a linear response to the illumination

Excerpt from IBS News Center
